X STRETCH 100 Automatic Stretch Hood Machine for Pallet Packaging

Stretch hood machines by MUEHSAM are automatic machines for securing palletized loads using elastic stretch hood film. The solution provides tight protection of the pallet and the products placed on it against external factors such as moisture, dust and mechanical damage.

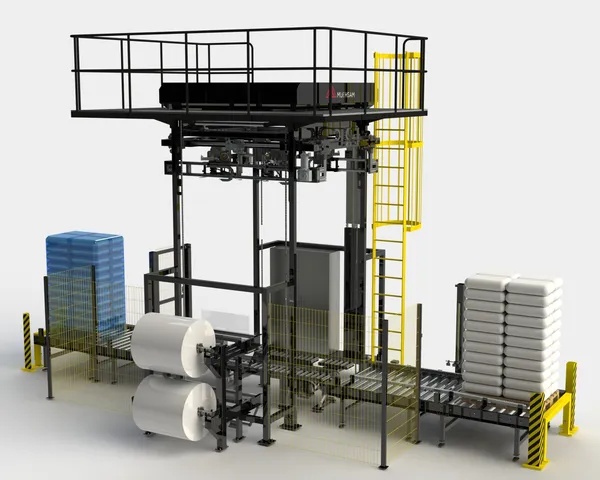

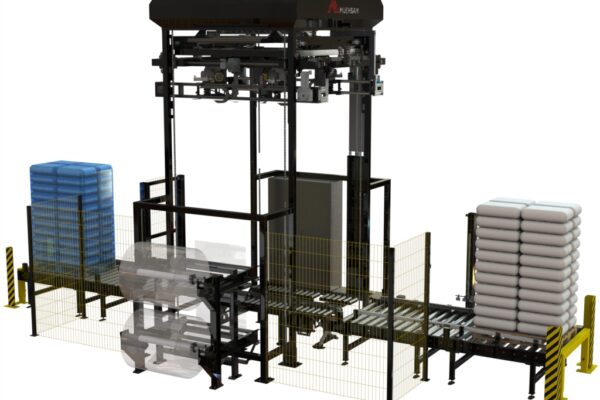

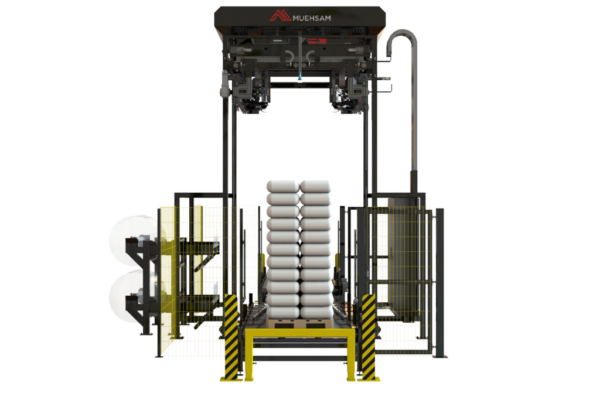

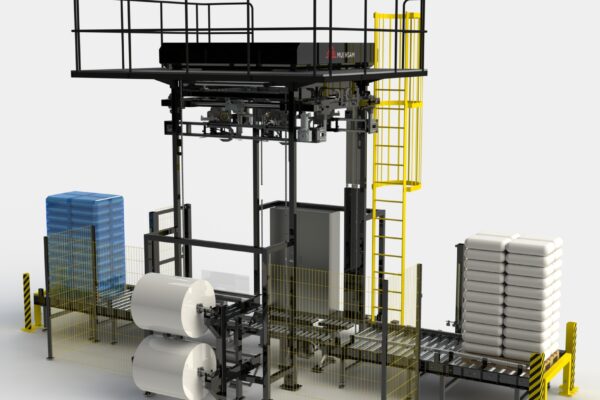

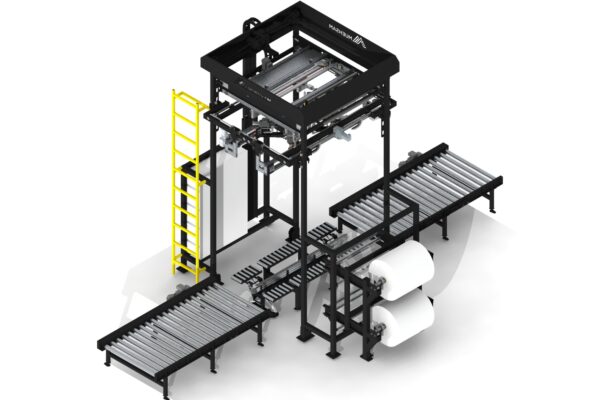

MUEHSAM offers the X STRETCH 100 hood wrapping machine – a specialized packaging machine designed for the automatic securing of palletized loads. The machine uses elastic stretch hood film, which is fitted to the load being secured.

The packaging process is fully automated. The machine automatically measures the pallet height, selects the appropriate amount of film, performs a tight film seal and then stretches the film hood along the X and Y axes using servo drives. This provides even film tension and proper fitting of the film to the load.

The X STRETCH 100 hood wrapping machine supports standard pallet sizes of 800 × 1200 mm and 1000 × 1200 mm. Depending on the characteristics of the load being secured, different types and thicknesses of film can be used. On special request, the machine can also be adapted to non-standard pallet dimensions during the design stage.

X STRETCH 100 – automatic pallet packaging

The X STRETCH 100 is designed to automate the process of securing palletized loads. The individual packaging stages – from measuring the pallet height, through preparing the appropriate amount of film and sealing, to stretching the film hood – are carried out automatically.

• Automatic pallet height measurement – the machine measures the height of the load being secured.
• Automatic film quantity selection – the required amount of film is selected as part of the automatic packaging process.
• Tight film sealing – the film is sealed around the load being secured.
• Film hood stretching along the X and Y axes – servo drives provide even film tension and proper fitting to the load.
• Standard pallet handling – 800 × 1200 mm and 1000 × 1200 mm.
• Different film types and thicknesses – the selection depends on the characteristics of the load being secured.
• Adaptation to non-standard pallet dimensions – the machine configuration can be adapted during the design stage.

Applications of stretch hood machines for load packaging

The X STRETCH 100 hood wrapping machine is designed for the automatic securing of palletized loads. The use of stretch hood film creates a protective layer fitted to the product being secured.

The secured load is protected against external factors such as moisture, dust and mechanical damage. The possibility of adapting the machine to non-standard pallet dimensions allows the solution to be used in various industrial applications.

Automation of the pallet packaging process

The packaging process performed by the X STRETCH 100 includes automatic pallet height measurement, selection of the appropriate amount of film, film sealing and stretching of the film hood along the X and Y axes. The use of servo drives enables even film tension and proper fitting of the film to the load being secured.

Full automation of the individual process stages enables repeatable securing of palletized loads according to the machine’s operating parameters.

Selection of a hood wrapping machine for a packaging line

When selecting a stretch hood machine for pallet packaging, factors such as pallet dimensions, the characteristics of the load being secured and the requirements for the film used should be considered. The X STRETCH 100 supports standard pallet sizes of 800 × 1200 mm and 1000 × 1200 mm and can be adapted to non-standard pallet dimensions on special request.

MUEHSAM helps select a solution suitable for the requirements of the specific packaging process and the characteristics of the load being secured.

If you are looking for an automatic stretch hood machine for pallet packaging, contact MUEHSAM. Based on the pallet dimensions and load characteristics, we can help select the appropriate solution.
